What does the next generation of power analysis and testing hold? For leaders in the automotive, aerospace, and renewable energy industry, there is an ever-growing need for precise power measurement. For that reason, AVL developed the AVL X-ion
PA2, which can be used across a variety of applications, to deliver high-precision power analysis with unparalleled accuracy.

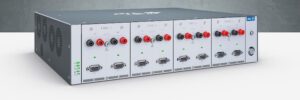

AVL X-ion PA2 Capabilities Overview
The AVL X-ion PA2 is engineered to provide comprehensive power analysis capabilities, which allow users to record time-stamped results and raw data values. It supports mechanical analysis for angular position, speed, torque, and power, which makes it an ideal solution for both standard and non-standard testing applications. The device’s native integration with Noise, Vibration, and Harshness (NVH) measurement modules and AVL X-ion indicating devices ensure seamless operation.
The AVL team is demonstrating this industry-leading solution at events like Forum 81 hosted by the Vertical Flight Society and the Applied Power Electronics Conference (APEC) hosted earlier this year in Atlanta, Georgia.
Teams around the world leverage the AVL X-ion product family for robust and reliable power analysis.
Features for the Enhanced Measurement Performance
One of the standout features of the AVL X-ion PA2 is its high level of connectivity. The device offers digital inputs for speed, torque, incremental encoders, and bi-directional CAN, along with extensions for rotor resolver inputs. This extensive connectivity allows for high-speed transient analysis, capturing transient behaviors at high resolution while optimizing long-term data recording.
Technical Specifications
The AVL X-ion PA2 offers galvanically isolated high voltage inputs, isolated current sensing, and automatic current sensor recognition and configuration via TEDS readout.
It also supports real-time calculations at the hardware level and offers a comprehensive AVL BEAT software toolbox for setup, measurement, result display, and post-processing.
Experience this Technology Firsthand
Interested in learning more about how the AXL X-ion PA2 or AVL BEAT software toolchains can help you with your next project? Please reach out to AVL’s team to schedule a demonstration with our power measurement experts, here.
